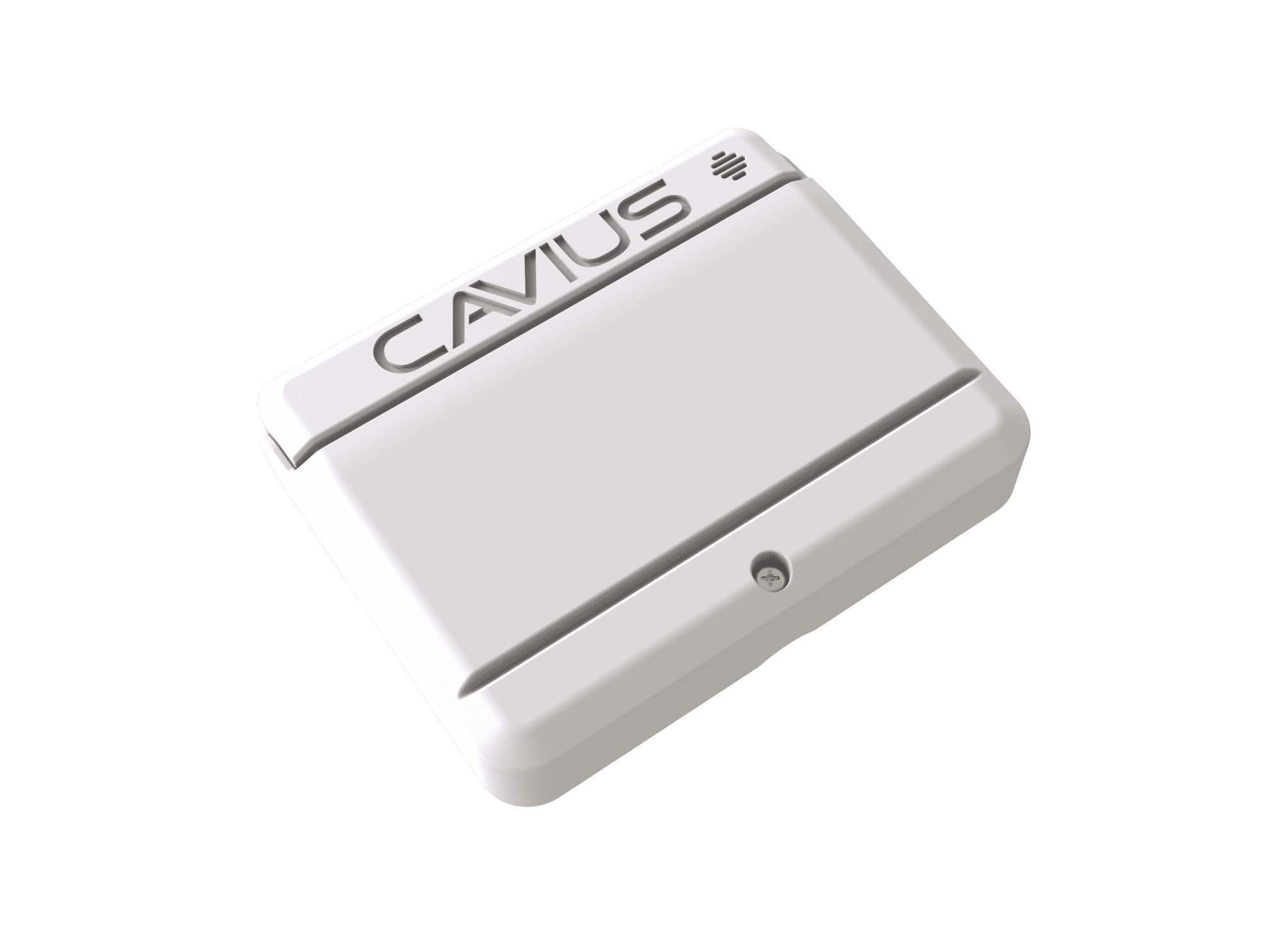

Wireless Family Relay Switch

Wireless Family Relay Switch

For Wireless Family Alarms
Product code: 9005 CAVRI

$179.90

11 in stock

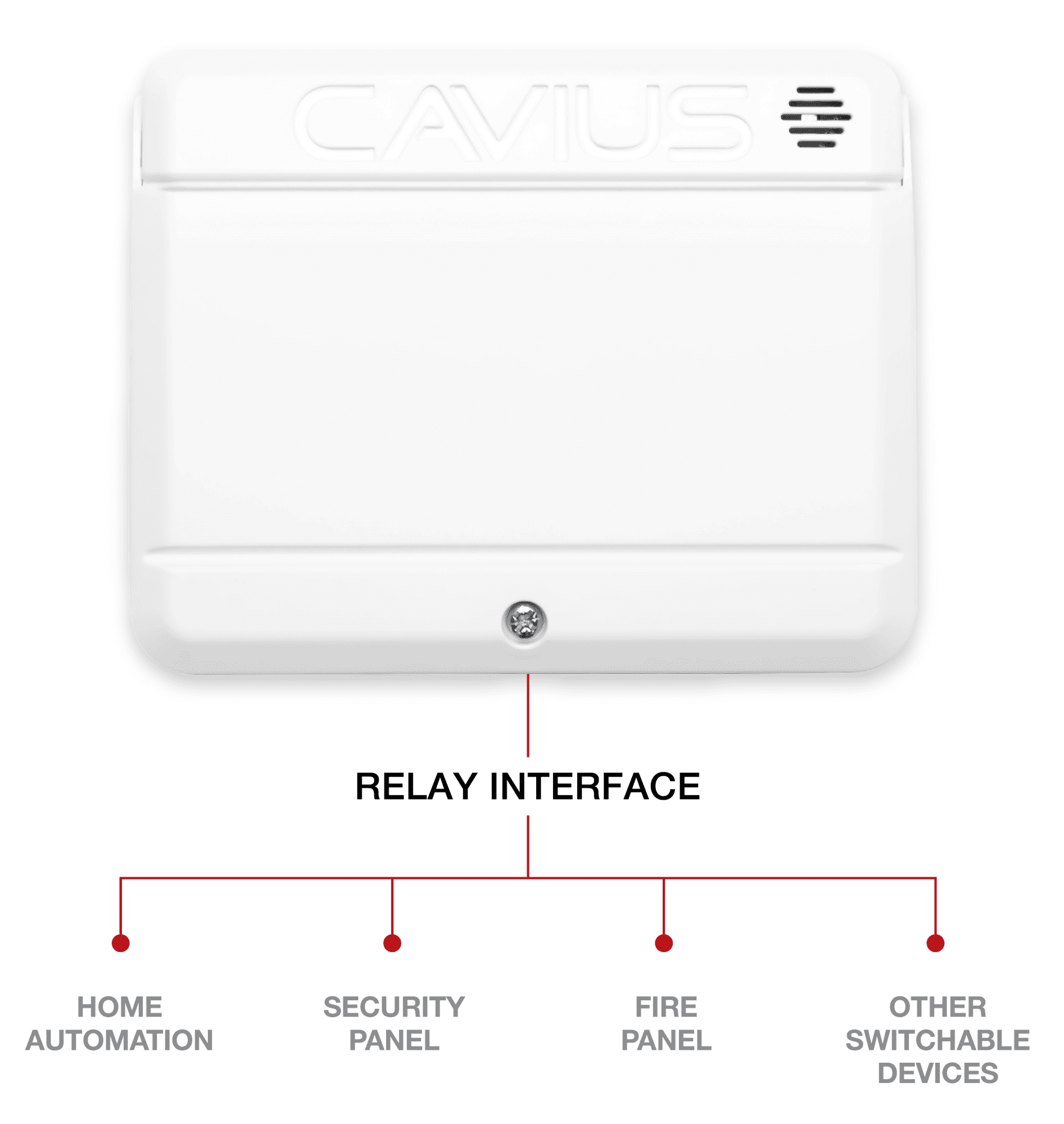

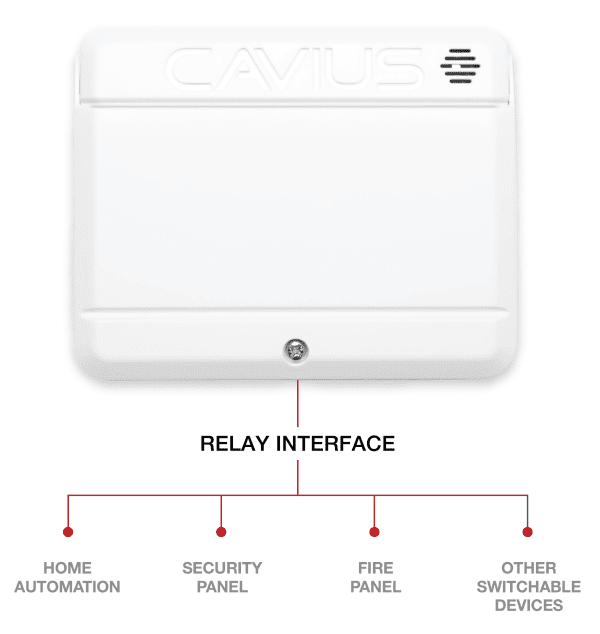

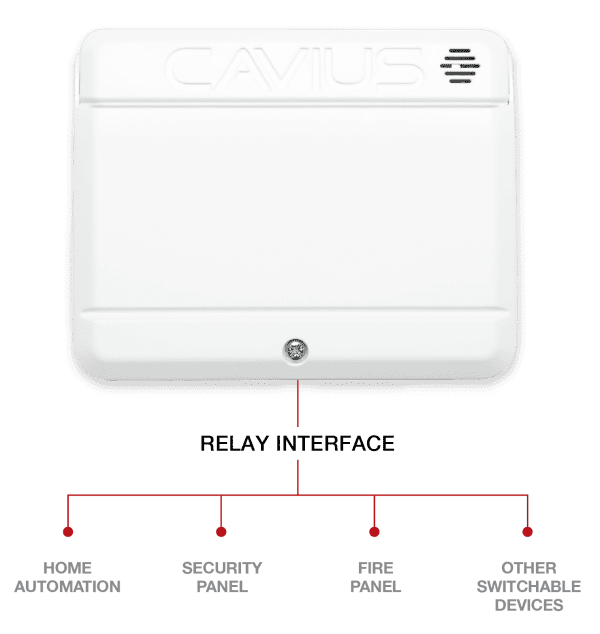

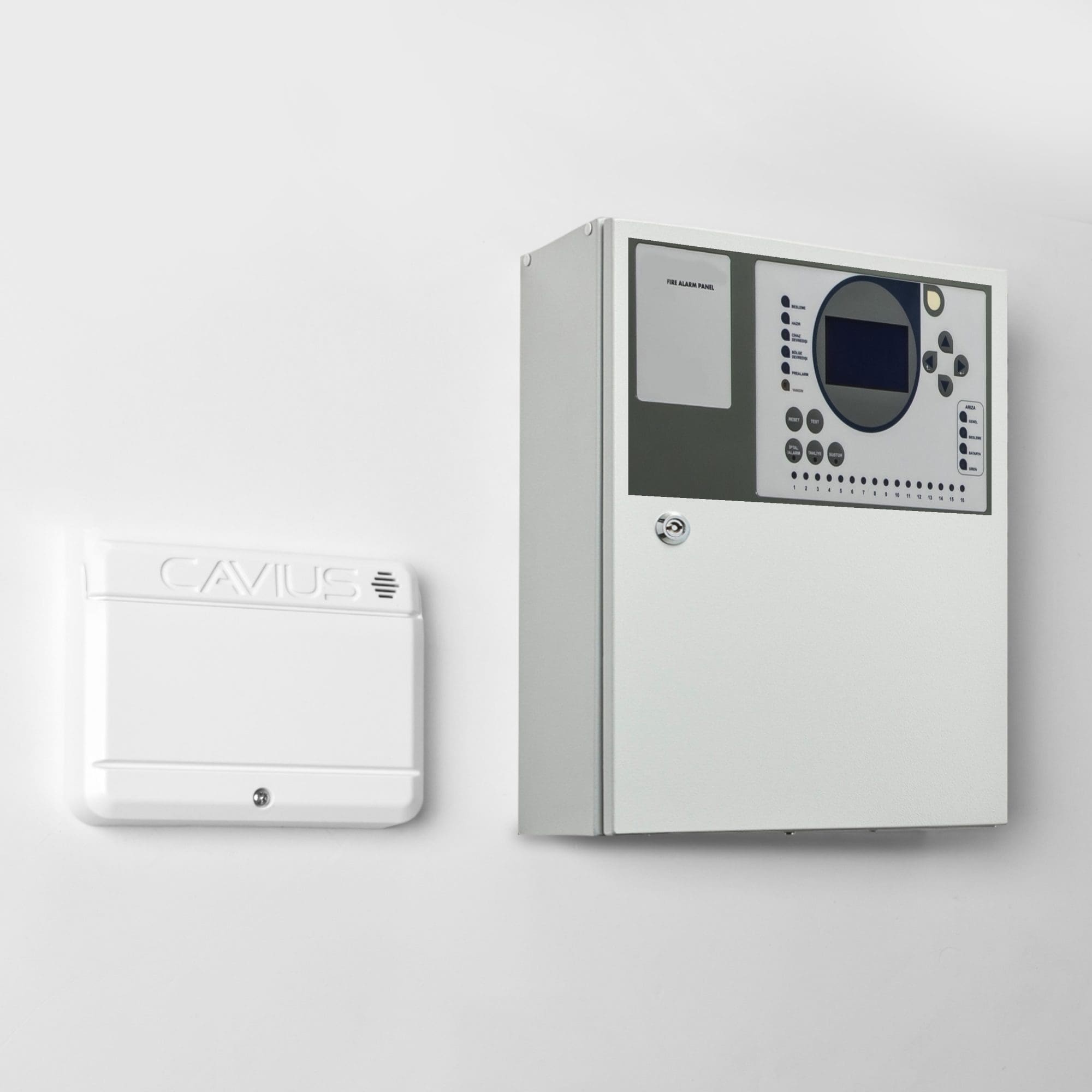

The CAVIUS Relay Interface connects to the CAVIUS Wireless Family alarms and integrates them to third-party external products. The 9005 CAVRI Relay provides a set of Normally Closed (NC) and Normally Open (NO) change over contacts. This enables CAVIUS smoke and heat alarms to trigger auxiliary devices such as security alarm panels, fire alarm panels, home automation systems, Telecare Systems, strobe lights, sounders, activate emergency lights, shut down air conditioners or release magnetic door holders. This product allows third party devices such as sprinkler flow switches or fire panels to be connected via the inputs to the trigger the CAVIUS alarms to sound when activated. Product Code: 9005 CAVRI

Features

  • REPLAY SWTICH (NO/NC) activities when the CAVIUS Wireless Family alarms detect a fire event‍
  • TRIGGER IMPUT for two-way activation (latched or pulsed) Volt-free:3v DC output with return, Voltage in: 3v – 30v
  • BATTERY BACK UP Duracell Lithium battery (replaceable)
  • OUTPUT REPLY: 250v AC @ 5 amps or 30v DC @ 5 amps
  • VISUAL INDICATOR Green LED indicating mains power supply‍
  • NEW RF TECHNOLOGY with the ability to connect up to 32 Wireless Family alarms
  • INTELLIGENT TEST BUTTON confirms the alarm is functioning correctly
  • 10 MINUTE hush button
  • 30 DAY low battery alert
  • EASY INSTALLATION with the unique smart-clip ceiling mechanism
  • AS3786:2014 certified, NZ Building Code, RTA and NZS 4514:2021 compliant
  • POWER ON Green ‘Power On’ LED light as a visible indicator of mains power supply CA
  • ACCESSORY OPTION Ability to work as a lamp hook, to avoid an extra spot on the ceiling
  • CONNECTS with CAVIUS Wireless Family Mains Powered Smoke Alarm, Wireless Family Smart remote, Wireless Family 5 Year Smoke Alarm and Wireless Family Thermal Heat Alarm

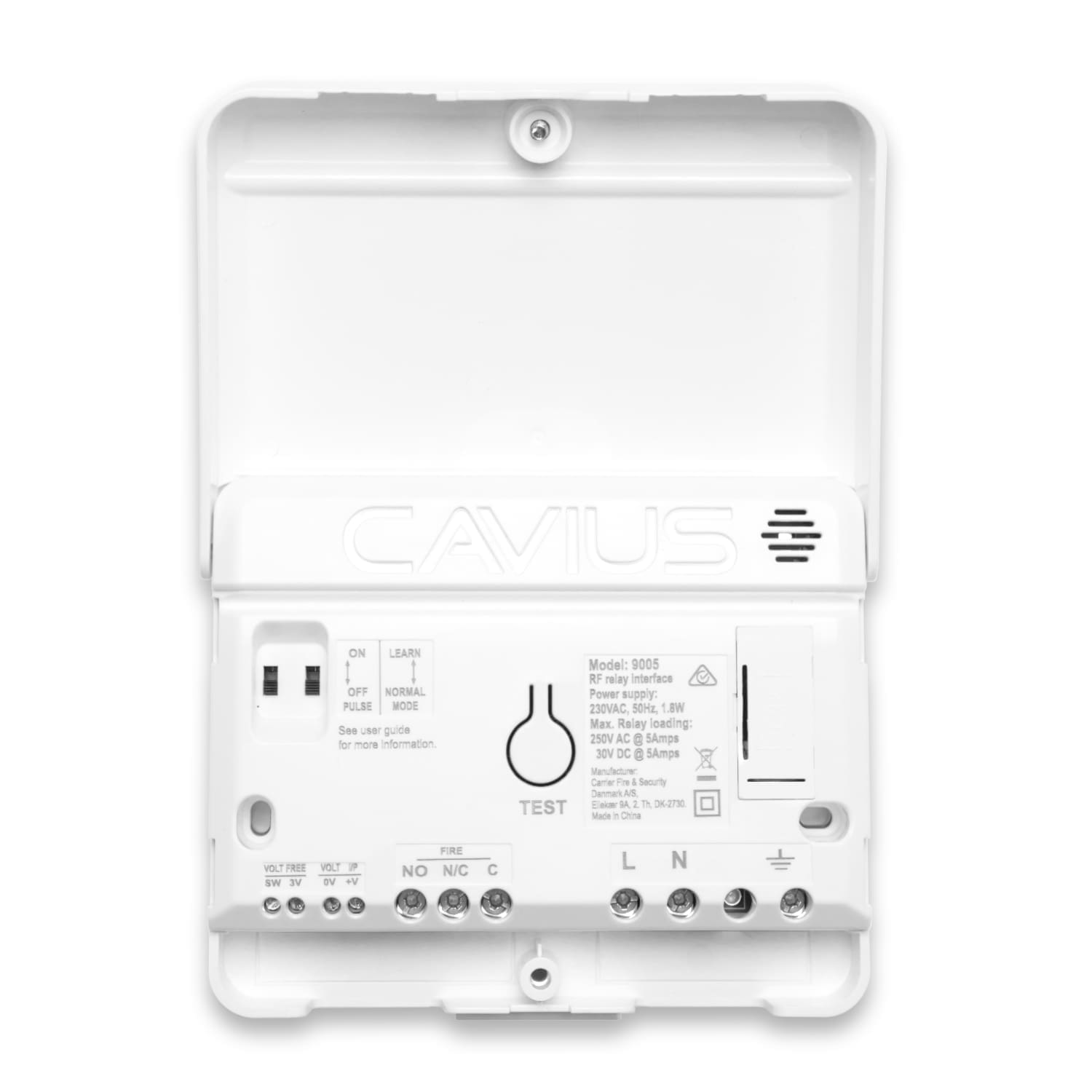

Technical Specifications

  • ELECTRICAL RATING: 230 VAC, 50 Hz, 1.8 W
  • BATTERY LIFE: 1-year life in battery mode without mains power, and up to 10-years normal life with mains power.
  • REPLACEMENT BATTERY: Duracell CR2 or Procell CR2
  • RELAY CONTACTS RATING: 250 VAC @ 5 Amps or 30 VDC @ 5 Amps
  • TRIGGER: I/P voltage: 3 to 30 V DC
  • LOW BATTERY: A short beep will sound out every 48 seconds for 30 days.
  • LEDS: Red LED for RF Learn Mode / Alarm / Fault / Green LED for mains power on.
  • TEST BUTTON is used to setup wireless interconnect, and test.
  • WIRELESS RADIO FREQUENCY 926.365 MHz
  • WIRELESS INTERCONNECT: up to 32 units
  • OPERATING TEMPERATURE RANGE: 0°C to 40°C
  • HUMIDITY RANGE: 0% to 90% RH, non-condensing
